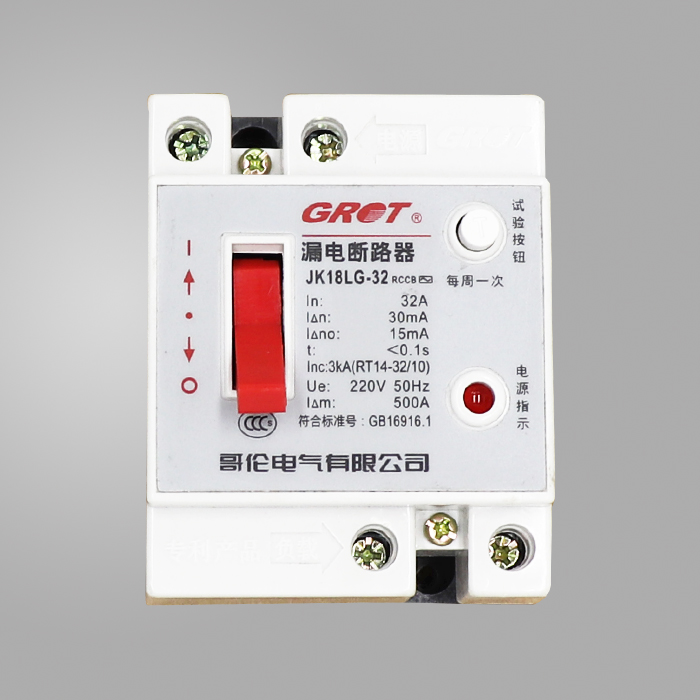

JK18LG series residual current operated circuit breaker is suitable for AC 50Hz, rated working voltage 220V, rated current up to 32A. The power supply neutral point directly grounded in the power supply system. As the leakage electric shock protection, it can also be used to prevent the electrical fire hazard caused by the grounding fault current due to the insulation damage of the equipment. At the same time, it can also be derived from the overvoltage protection function as needed. The circuit breaker has no overload or short circuit protection.

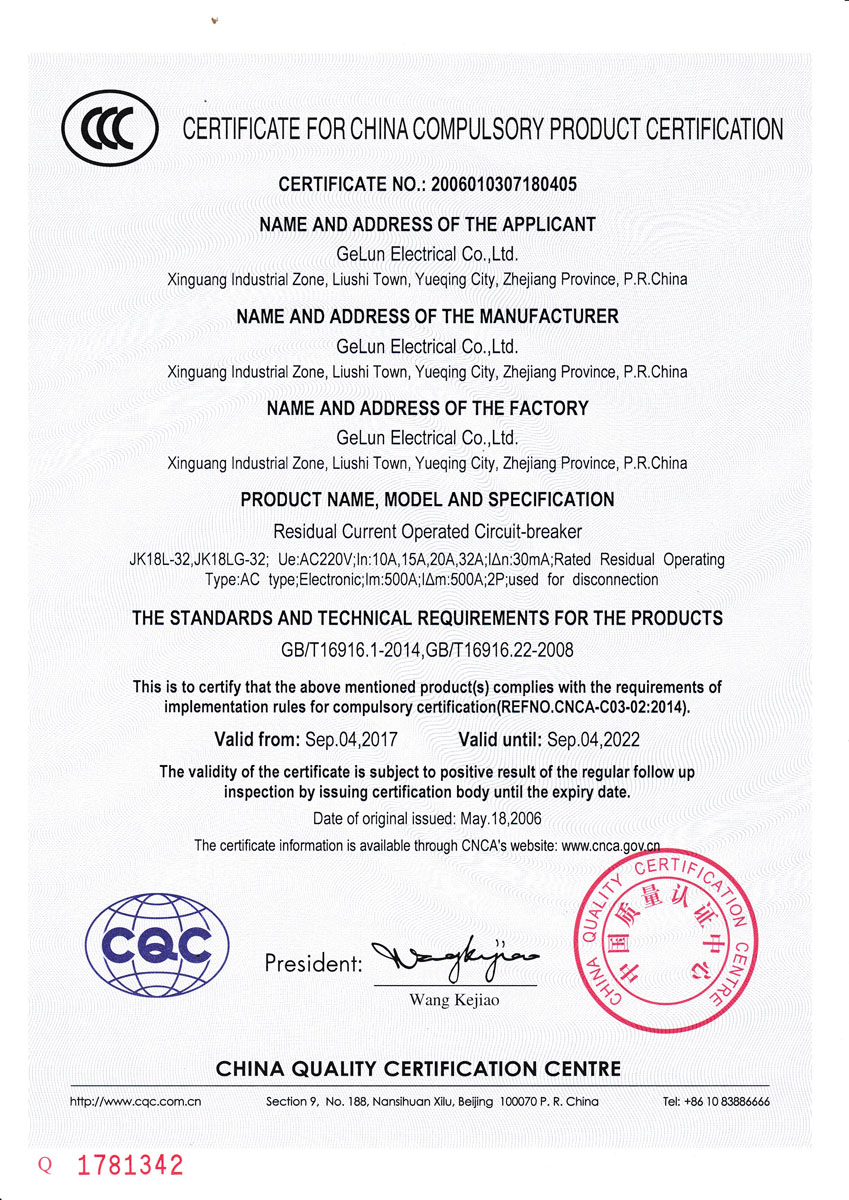

Comply with the GB/T 16916.1、GB/T16916.22 Standard。
Frame Size:32A
Current Grade:10-32A
Limit Short Circuit Current:Im=500A
Poles:2P
