HR6 Series fuse disconnector is used in power switch, disconnector and emergency switch for manual infrequent operation in distribution circuit and motor circuit with high short-circuit current of 50Hz rated, operating voltage up to 660V and agreed heating current up to 630A, in order to protect the circuit from short current.

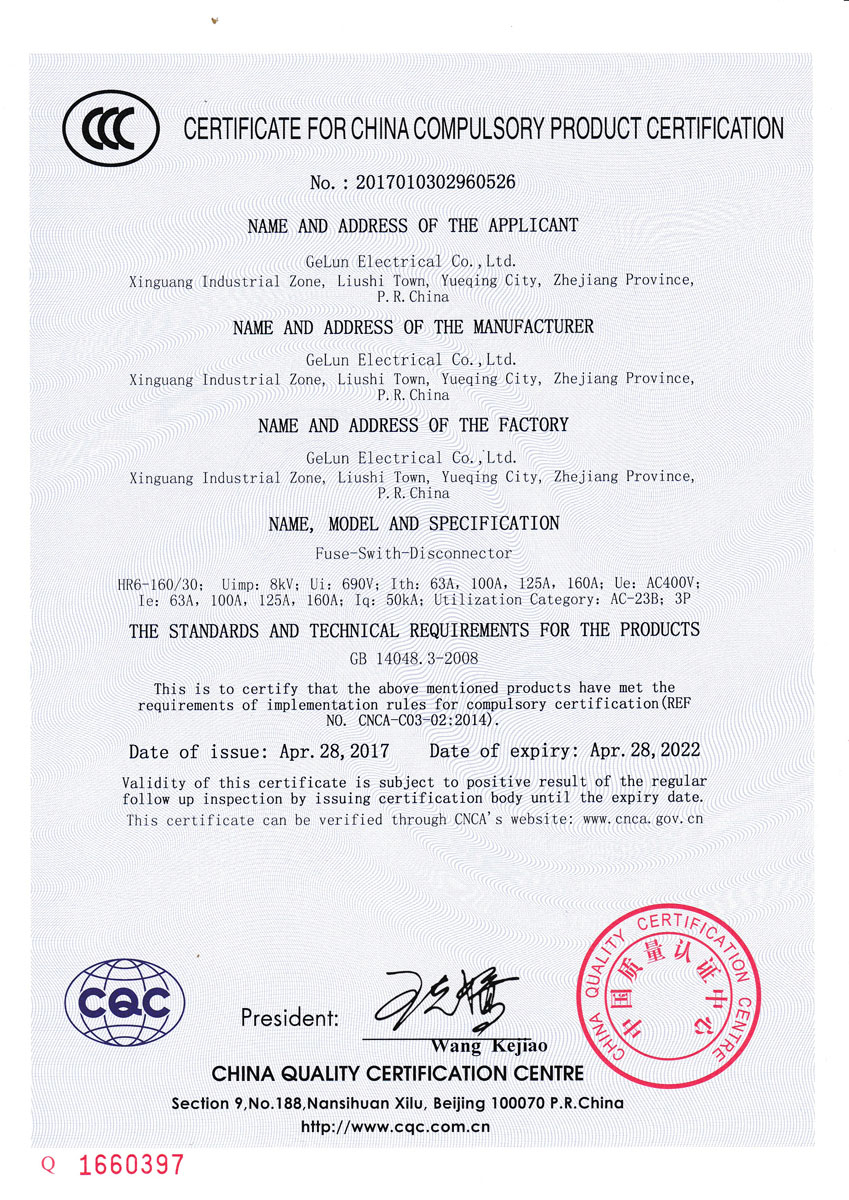

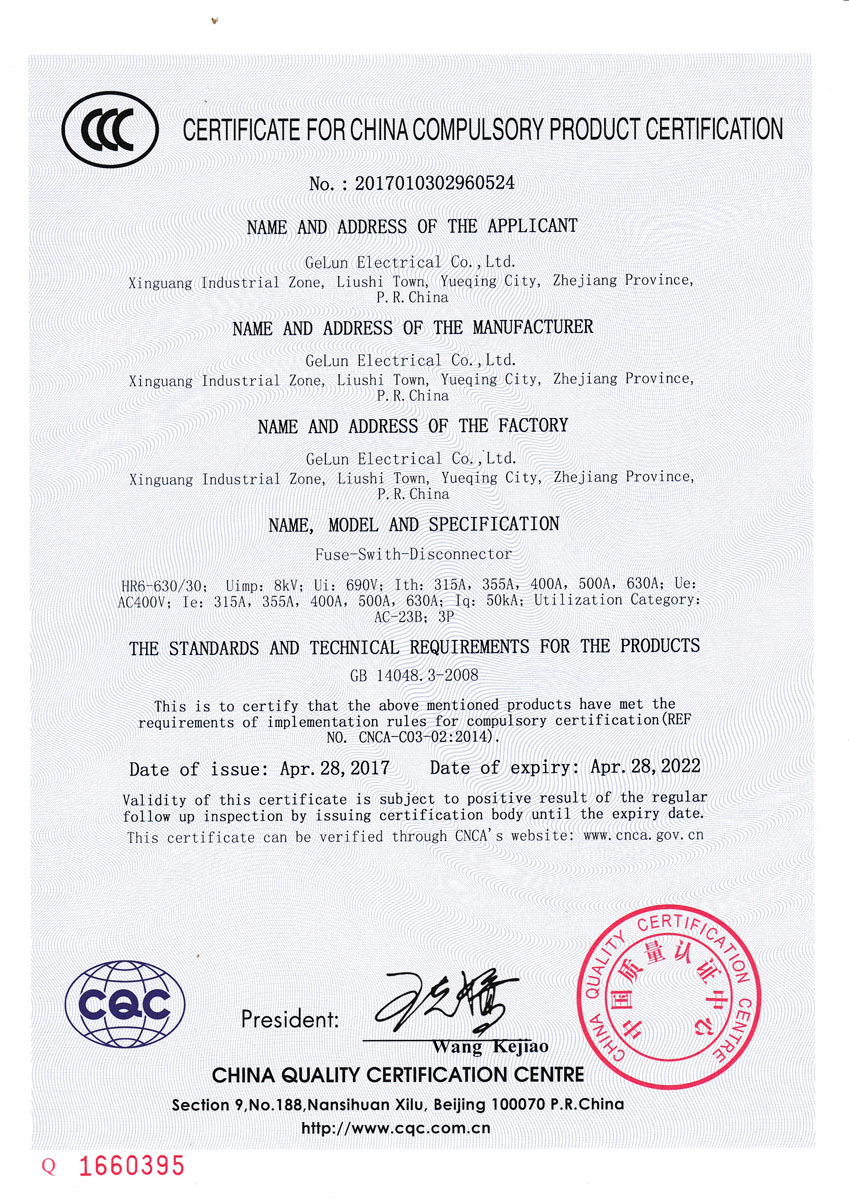

Comply with the IEC60947-3、GB/T 14048.3 Standard
Frame Size :160、250、400、630A
Current Grade:63-160A、200-250A、250-400、315-630A
Rated Limit Short Circuit Current:Iq:50 kA
Poles:3
