GDHL3-125 series isolating switch is suitable for AC 50Hz, rated working voltage up to 400V, the agreed heating current to 125A circuit, mainly used for switching resistance load, for the purpose of line and power isolation. This product has a lock function. The maintenance personnel can lock the handle while repairing, which can prevent accidental closing during maintenance. There is also a visible window to see the breakpoint of the contact.

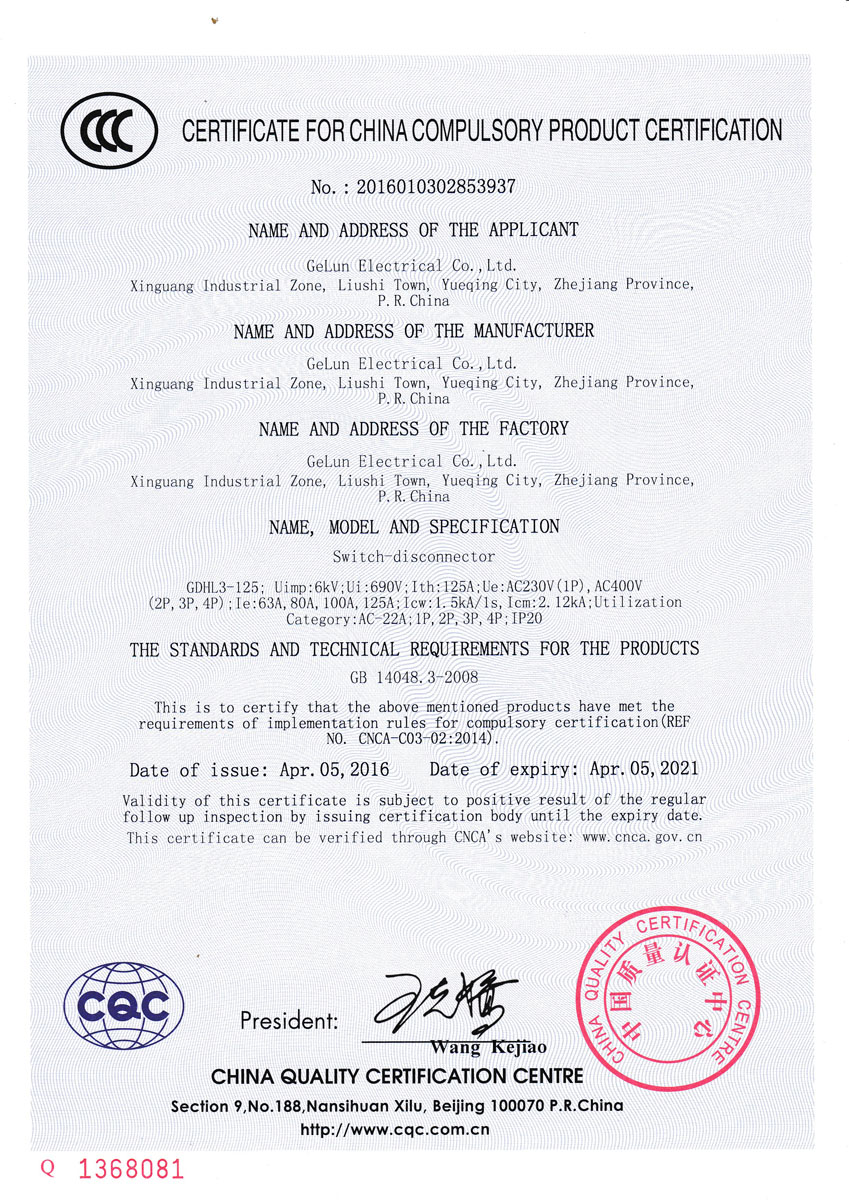

Comply with the IEC60947-3、GB/T 14048.3 Standard
Frame Size:125
Current Grade:63-125A
Rated Short-time Withstand Current:Icw:1.5 kA -t=1s
Rated Short-circuit Connect Capability:Icm(Peak Value):2.12kA
Poles:1、2、3、4P
